Triangle Aluminum Rooftop Tent

• Sleeps 2–3 Adventurers: Stretch out and relax after a full day outdoors.
• Setup in Minutes: Hidden hydraulic struts make popping it open fast and effortless.
• Rugged Aluminum Frame: Lightweight honeycomb design built for serious adventures.
• Four-Season Ready: Rain, snow, or heat — camp comfortably all year round.
• Built for Comfort: 2” thick mattress with a washable cover — your back will thank you.
• Ultimate Weatherproofing: Tough Oxford rainfly and breathable waterproof tent body.
• Stay Organized: Built-in pockets, gear straps, and a drop-down pole bag keep essentials handy.
• Breathe Easy: 4 vents and full bug mesh on windows and doors for fresh air anytime.
• Tough, Travel-Ready Ladder: Extendable to 7'6", with wide "lay-flat" steps for comfort.
• Compact When Closed: Just 6.67” high when packed — easy to transport and store.
• Sky Views: Dual skylights perfect for stargazing on clear nights.
• Adventure-Proof: Designed to take a beating and still keep you comfortable.

• SquatchBox Triangle Aluminum Rooftop Tent
• 2” High-Density Mattress with Washable Cover
• Telescopic Aluminum Ladder (extends to 7'6")
• Built-In Waterproof Travel Cover
• Mounting Kit (hardware to install to your roof rack or crossbars)
• Built-In Storage Pockets and Gear Straps
• Removable Rainfly for all-weather protection
• Drop-Down Pole Storage Bag
• Welcome Kit with setup instructions and essentials
• 1-Year Manufacturer’s Warranty

Tent Body Fabric: 280G Polyester-Cotton blend, PU 2000mm waterproof rating, breathable and durable for all seasons

Rainfly Fabric: 420D Oxford polyester, PU 2000mm waterproof rating, wind and rain resistant

Frame: Lightweight Honeycomb Aluminum Alloy for strength without extra weight

Pole System: Aluminum poles, 25mm thick with 1.5mm wall thickness for extra durability

Travel Cover: Integrated waterproof cover for ultimate protection during transport

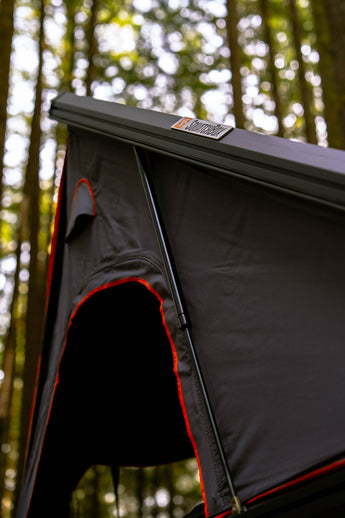

Hydraulic System: Hidden stainless steel hydraulic struts for easy, assisted setup

Mattress: 2” thick high-density foam mattress with a removable, washable fabric cover

Hardware & Hinges: Heavy-duty stainless steel for maximum weather and corrosion resistance

Seams & Zippers: Reinforced stitching with waterproof sealing; heavy-duty outdoor-rated zippers on all openings

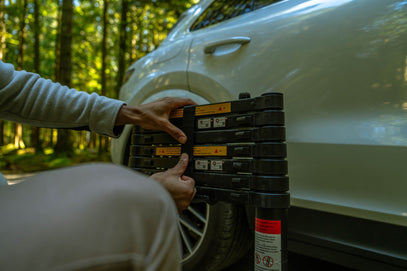

Ladder: Aluminum telescopic ladder with spring-loaded brackets and flat comfort rungs

Weight: 62 kg (136.69 lbs)

Mattress Size: 210 cm x 132 cm (83" x 52")

Open Dimensions:

• Width: 132 cm (52")
• Length: 210 cm (83")
• Height: 150 cm (59")

Closed Dimensions:

• Width: 132 cm (52")
• Length: 210 cm (83")
• Height: 17 cm (6.67")

Ladder Height: Extends up to 2.3 meters (7’6”)

WARNING: Failure to follow these safety instructions may hamper your use or enjoyment of the SquatchBox Rooftop Tent (the “Tent”) and may result in injury or death. Please read and follow all instructions carefully before installing and using the Tent.

Safety Information

• Before using the Tent, please ensure that:
• You install roof bars from reputable manufacturers and follow their instructions and recommendations.
• You install the Tent according to SquatchBox's instructions and ensure your roof bars can support the tent and its occupants.
• You adhere to all speed limits while driving with the Tent attached. Drive carefully and avoid reckless driving.
• You regularly check the Tent and its components for any signs of damage or wear and replace damaged parts immediately.
• You are aware of the increased vehicle height and avoid low-clearance areas like bridges, trees, and parking garages.
• You follow SquatchBox’s instructions for installing and using the ladder safely.
• By following these guidelines, you’ll enjoy a safer and more memorable camping experience.

Safety Instructions:

1. Ensure your vehicle’s roof rack can support the Tent and install according to SquatchBox’s instructions.
2. Do not exceed the maximum weight capacity of 650 lbs.
3. Secure the Tent firmly to your roof rack using the provided mounting kit.
4. Never leave children, pets, or objects unattended inside the Tent.
5. Always use the provided ladder, securely fastened before use.
6. Avoid using the Tent during extreme weather conditions like heavy rain, wind, or snowstorms.
7. Do not stretch, bend, or misuse the Tent beyond its intended dimensions.
8. Keep all open flames away from the Tent, as it is made from flammable materials.

Fitting Instructions

• Open the Tent by unlocking its latches and pushing upwards.
• Unfold and hook the ladder securely onto the Tent.
• Adjust the ladder height for stability and safe use.
• Secure the Tent to your roof rack using the mounts and brackets.
• Tighten all brackets, nuts, and bolts to ensure stability.
• Climb up the ladder and enter the Tent through the access door.
• Close the Tent’s door using the zippers.
• Always fold and store the Tent dry to prevent mold or damage.

User Guide

• To open: unlock the latches and push the Tent upward.
• To close: pull down on the straps and secure the latches.
• Always secure the ladder before climbing.
• Never exceed the 650 lbs weight capacity.
• Never leave children, pets, or objects unattended in the Tent.
• Avoid use in extreme weather conditions.
• Keep all open flames away from the Tent.
• Ensure the Tent is dry before folding and storing it.
• Follow all opening and closing instructions carefully to avoid damage.

Installation Manual

1. Unboxing the Rooftop Tent

• Ensure you have enough space to unbox and construct the Tent safely.
• Carefully remove the Tent from packaging.
• Check all components: Tent fabric, Frame, Poles, Screws, bolts, and brackets, Crossbar mount, Ladder, Straps and clamps.
• Inspect all components for damage. If anything is missing or damaged, contact support@squatchbox.ca.
